IBFM Art. 738-739 Cardine a Cuscinetti

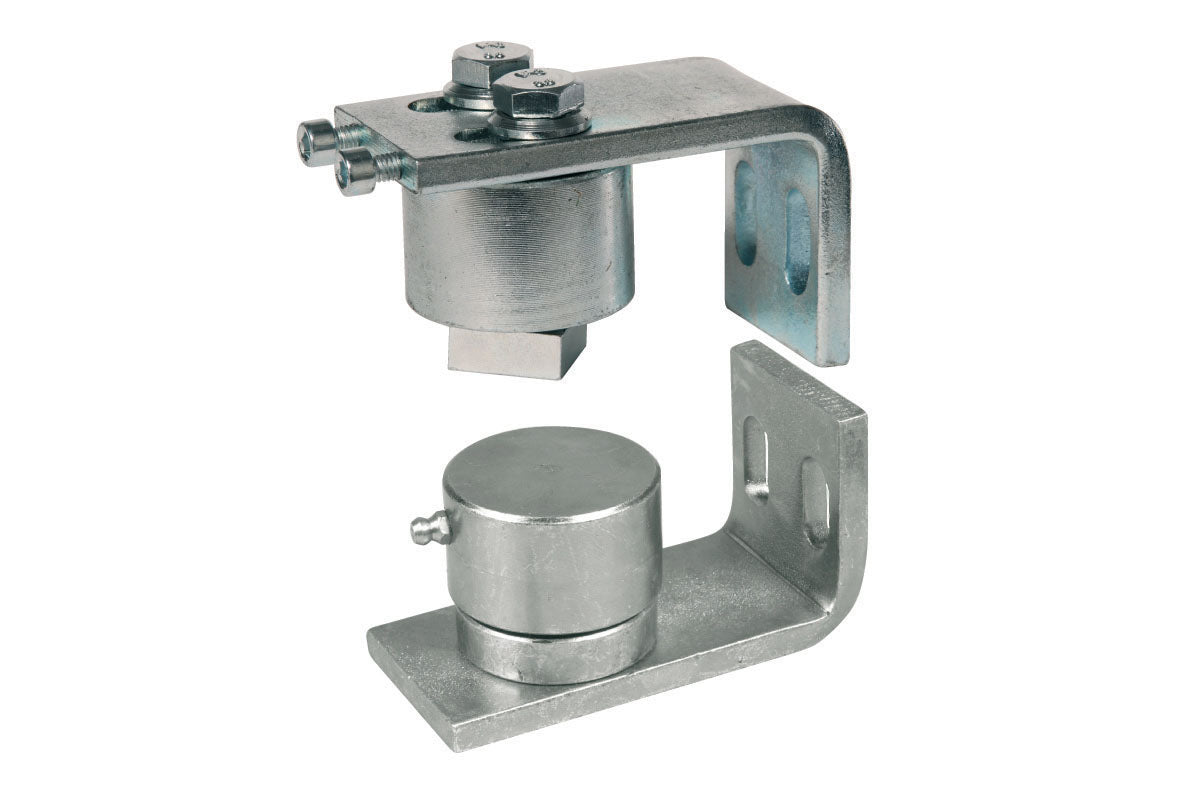

Heavy duty lower+upper hinges Ø50mm. This assembly is designed to manage both radial and axial loads, even in the most unforgiving conditions. The upper hinge is suitable to be screwed to the upper part of the frame profile and welded on the door and allows, through screws, the horizontal and vertical regulation of the door leaf in the upper part. The lower hinge is suitable to be screwed to the lower part of the frame profile and welded on the door and allows the vertical regulation of the door leaf in the lower part.

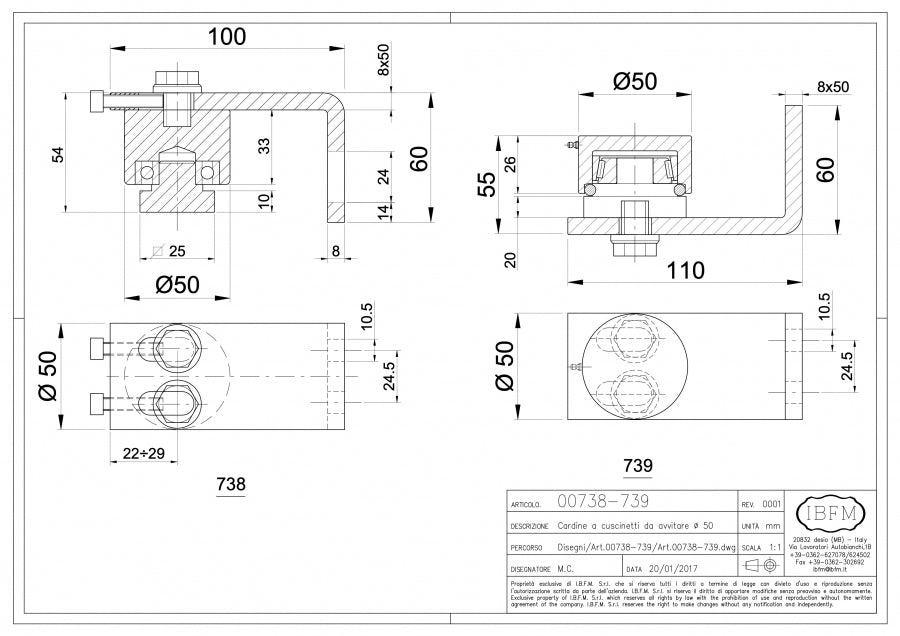

Le misure (Ø) si riferiscono al disegno tecnico.

Prodotto originale I.B.F.M., Desio.
