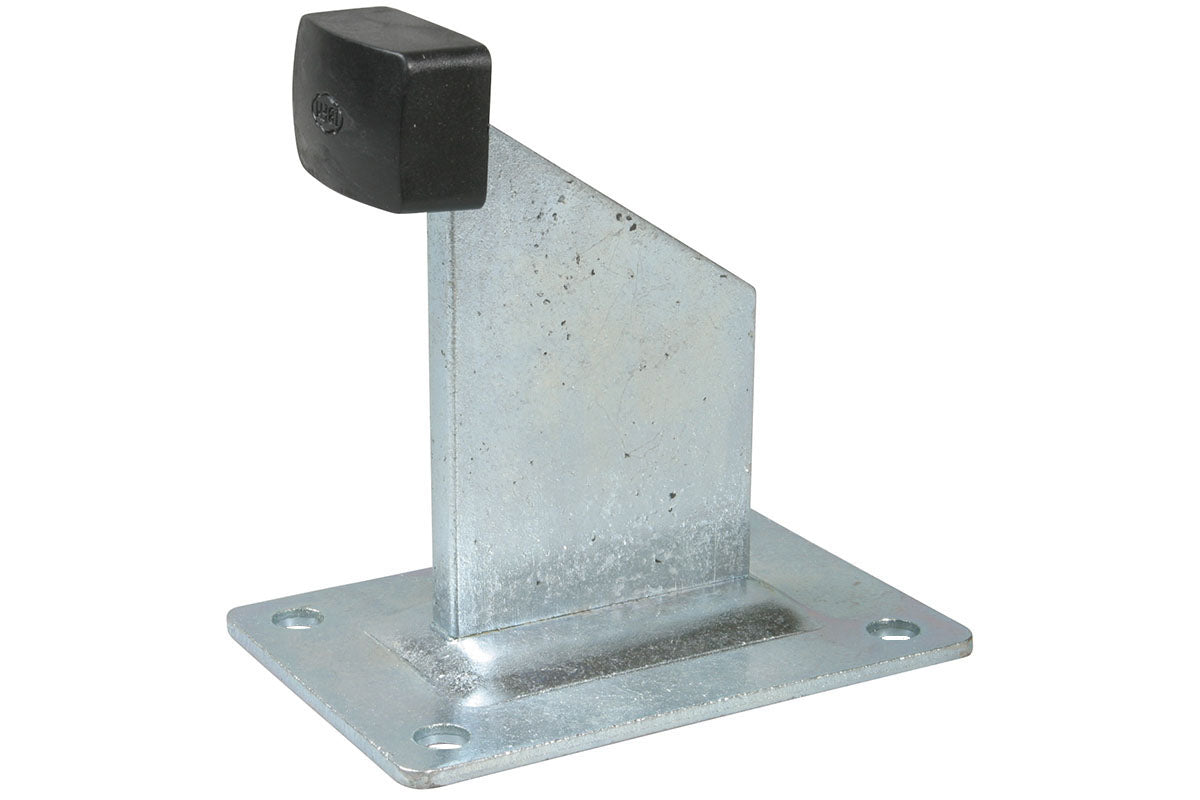

IBFM Art. 476 Arresto Fine Corsa
IBFM Art. 476 Arresto Fine Corsa
Prezzo di listino
€14,05
Prezzo di listino
Prezzo scontato
€14,05
Prezzo unitario
/
per
Imposte incluse.
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro

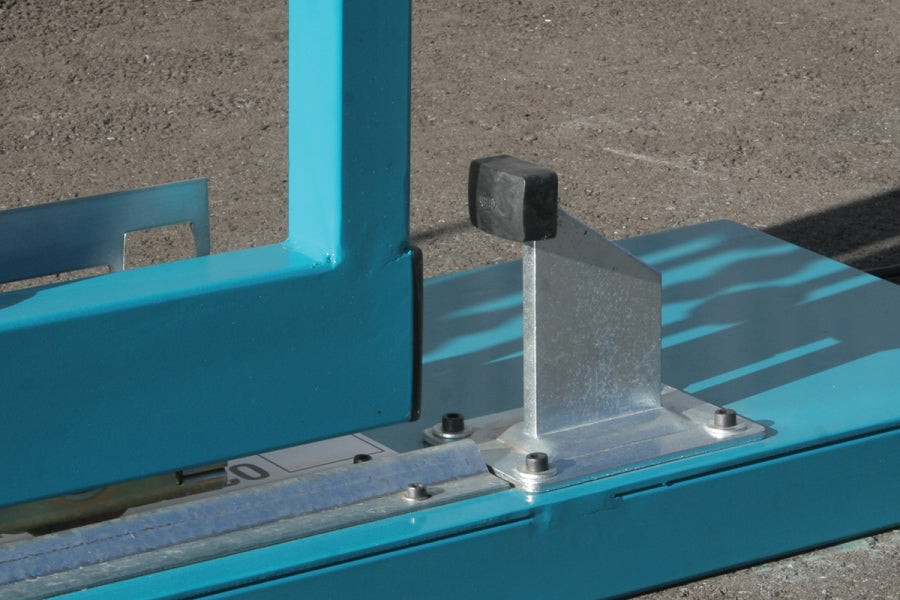

Stopper welded on plate for Sliding Gates. Suitable to be screwed thanks to the 4 holes Ø10,5mm on the welded plate. This product is typically aligned with the sliding track and the closing direction of the gate leave. Usually it is screwed at the end of the sliding track, directly on the ground-floor. Could be installed also in different positions and for different purposes. Thanks to the strong constructions, it is suitable to help stopping heavy gates leaves. The rubber bumper also helps in the final closing process without shocks or damages to the gate leave itself and helping with the noise reduction.
| Codice | Misura | Finitura | Unità | Pezzi per scatola |
|---|---|---|---|---|
| 476P | 50mm | Acciaio Zincato | pezzo | 10 |
| 476G | 70mm | Acciaio Zincato | pezzo | 10 |

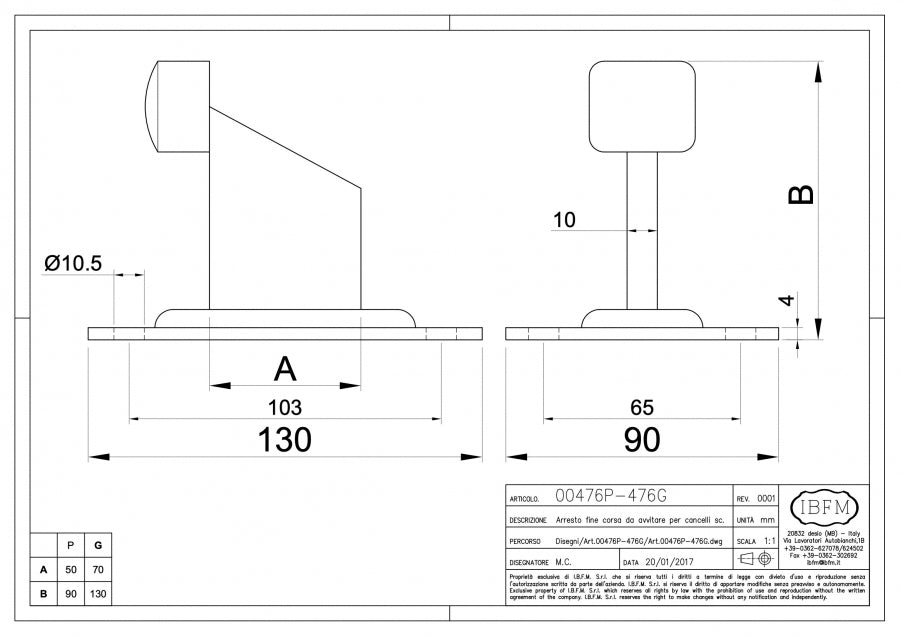

Le misure (A) si riferiscono al disegno tecnico.
Prodotto originale I.B.F.M., Desio.
