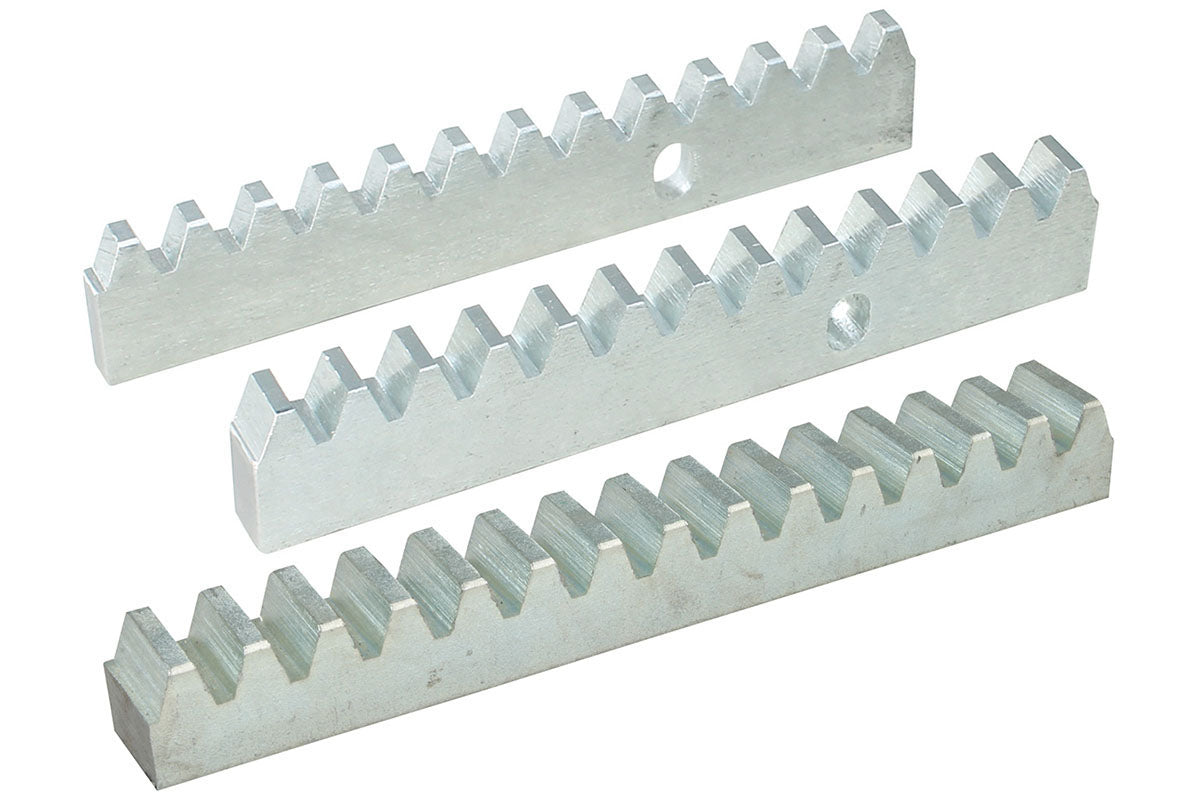

IBFM Art. 473 Cremagliera per Cancelli Scorrevoli Motorizzati

To be applied on the side of a gate intended to be motorized, especially on automatic entrance gates. The application is made thanks to the spacers with screws which connect the rack to the side of the gate. Cut in correct length it assures a strong automatic opening of the gate leaf when used in combination with a strong enough motor. Another aspect to be considered is that the gear on the motor should be M4 in order to be suitable for this rack. It is very important to position the rack at a suitable height referring to the height of the motor’s gear. An inaccurate match between the 2 parts can result in deterioration both of the rack and the motor’s gear.

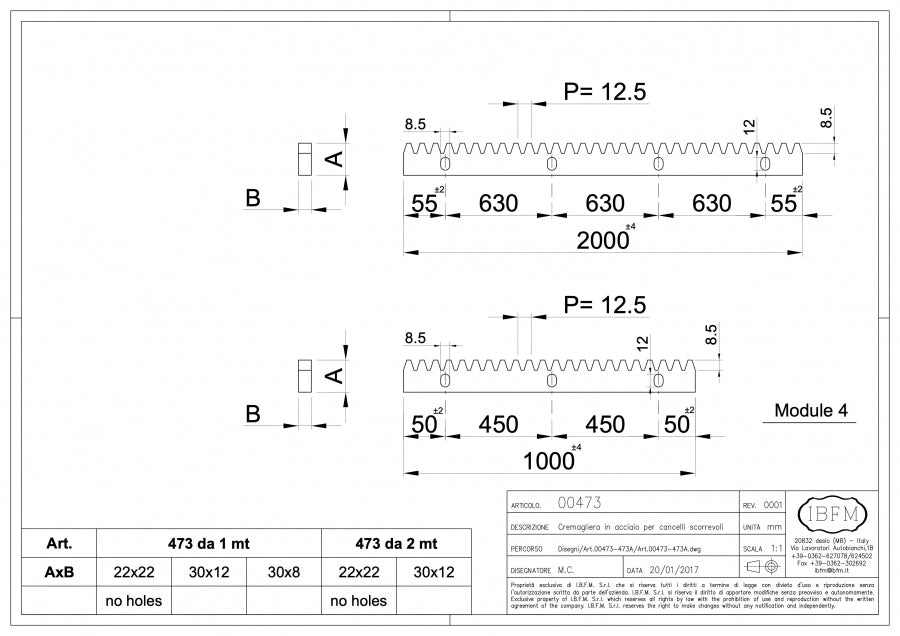

Le misure (AxBxL) si riferiscono al disegno tecnico.

Prodotto originale I.B.F.M., Desio.
