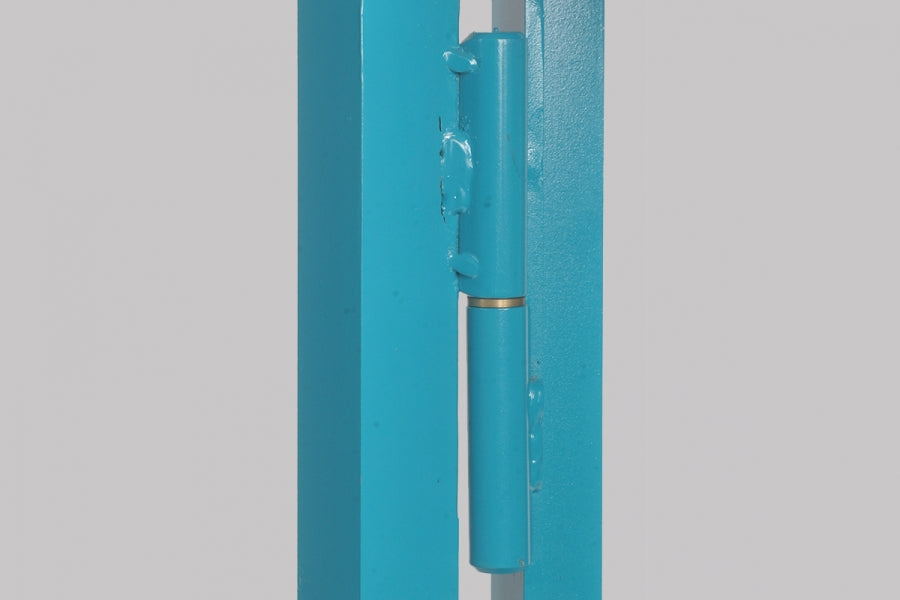

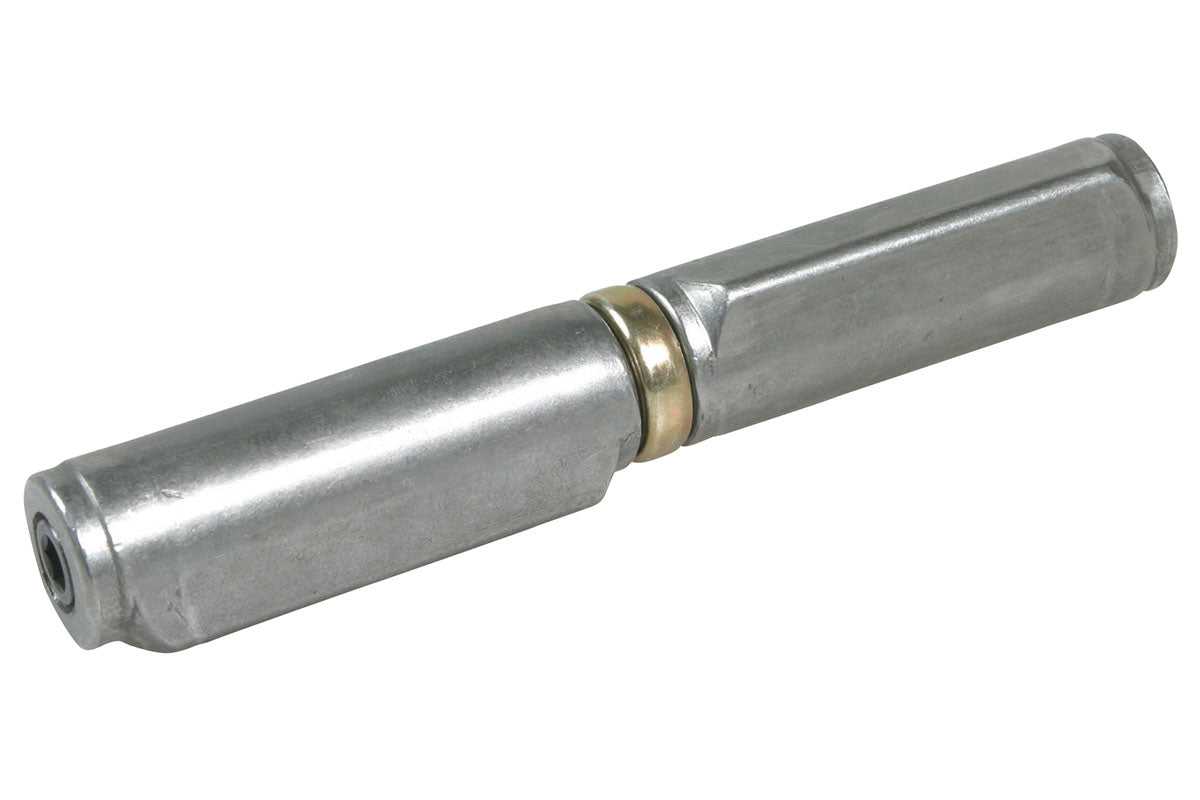

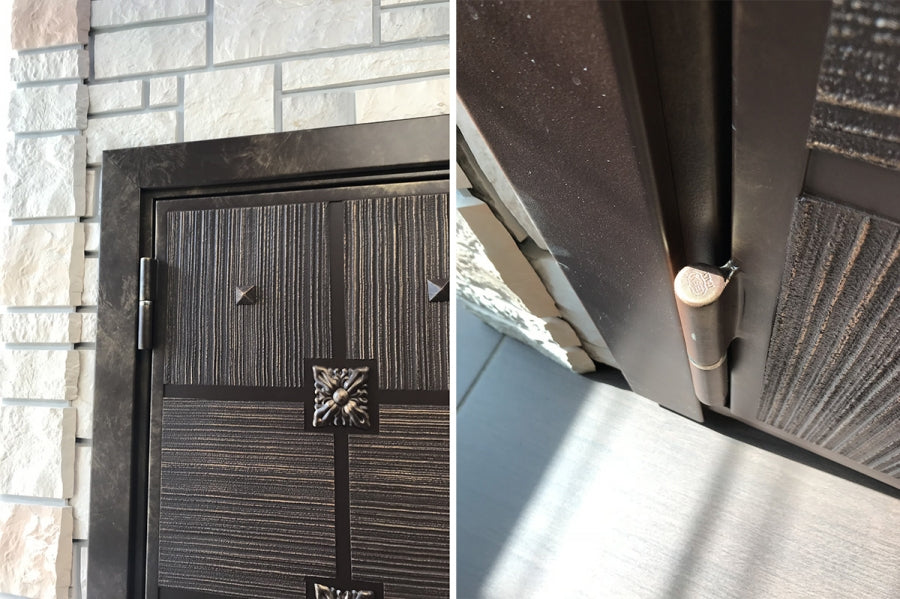

IBFM Art. 415/R Cerniera a Goccia Gigante Regolabile

This hinge allows the regulation on the vertical axis. In order to regulate the hinge, is needed to remove the screw positioned on the lower end of the hinge. After the screw is removed, it is possible with an hexagonal key to operate on the internal pin. By screwing or unscrewing the internal pin it is possible to regulate the height of the hinge and, consequently, the height of the door itself. After this operation, it is important to screw firmly the screw in order to lock the height position of the hinge. During the welding process pay great attention on not deforming or damage both the product and the support profile avoiding overheating. Check the strength of the welding before installing the assembly.

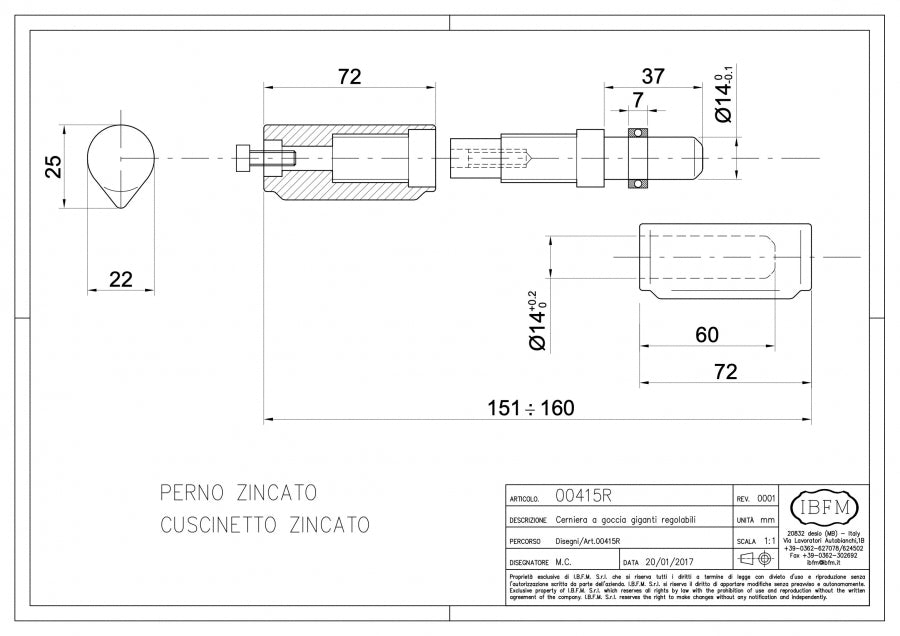

Le misure (A) si riferiscono al disegno tecnico.

Prodotto originale I.B.F.M., Desio.
