IBFM Art. 388 Ruota con Piastra - 1 Cuscinetto - Gola V
IBFM Art. 388 Ruota con Piastra - 1 Cuscinetto - Gola V
Impossibile caricare la disponibilità di ritiro

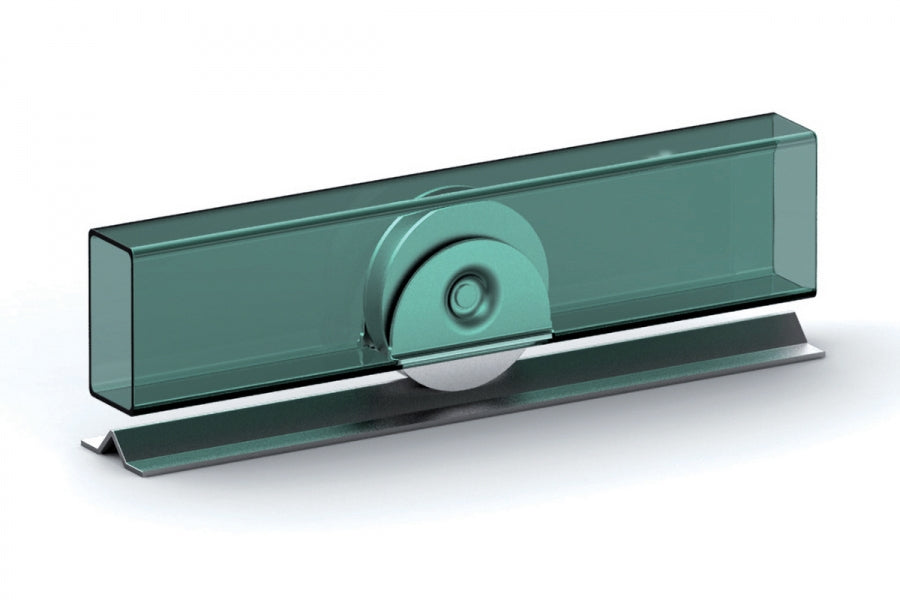

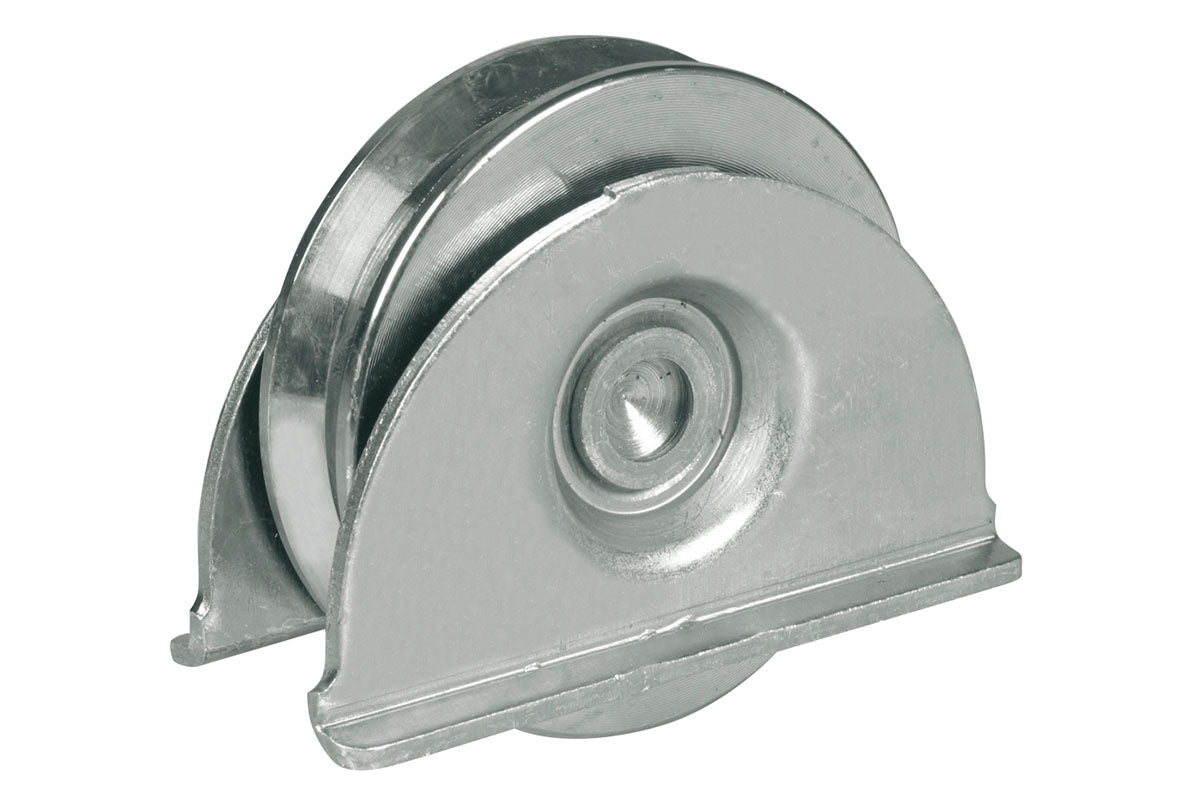

Metal wheel with 1 ball bearing and V groove to be welded, suitable for heavy metal gates. This product by rotating allows the opening of gates operated manually or by electric engines. Consider to match the shape of the groove with the shape of the track in order to obtain a durable functioning and a not excessive consumption of the elements themselves. The installation is obtained by creating an opening in the lower part of the profile of the gate lower section. Then it’s possible to insert the wheel in that opening and weld the brackets of the wheel to the gate profile. After the installation, the only visible part is the lower part of the wheel.
| Codice | Misura | Finitura | Capacità (Kgx2pcs) | Unità | Pezzi per scatola |
|---|---|---|---|---|---|
| 388060 | 60mm | Acciaio Zincato | 200 | pezzo | 10 |
| 388070 | 70mm | Acciaio Zincato | 340 | pezzo | 6 |
| 388080 | 80mm | Acciaio Zincato | 400 | pezzo | 6 |
| 388090 | 90mm | Acciaio Zincato | 420 | pezzo | 4 |
| 388100 | 100mm | Acciaio Zincato | 440 | pezzo | 4 |
| 388120 | 120mm | Acciaio Zincato | 480 | pezzo | 4 |
| 388140 | 140mm | Acciaio Zincato | 540 | pezzo | 1 |

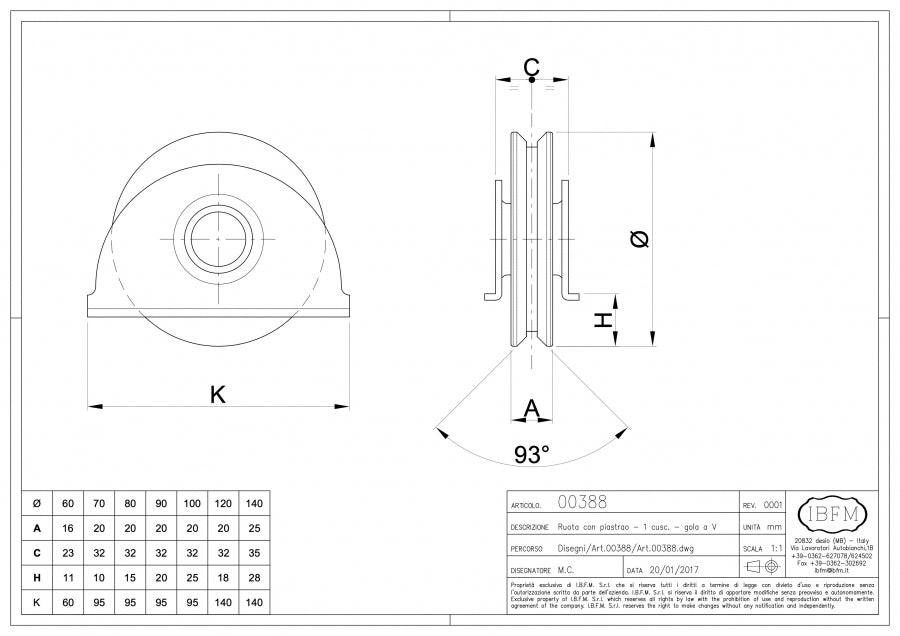

Le misure (Ø) si riferiscono al disegno tecnico.
Prodotto originale I.B.F.M., Desio.
