IBFM Art. 386 Ruota con Supporto Esterno - 1 Cuscinetto - Gola V
IBFM Art. 386 Ruota con Supporto Esterno - 1 Cuscinetto - Gola V
Impossibile caricare la disponibilità di ritiro

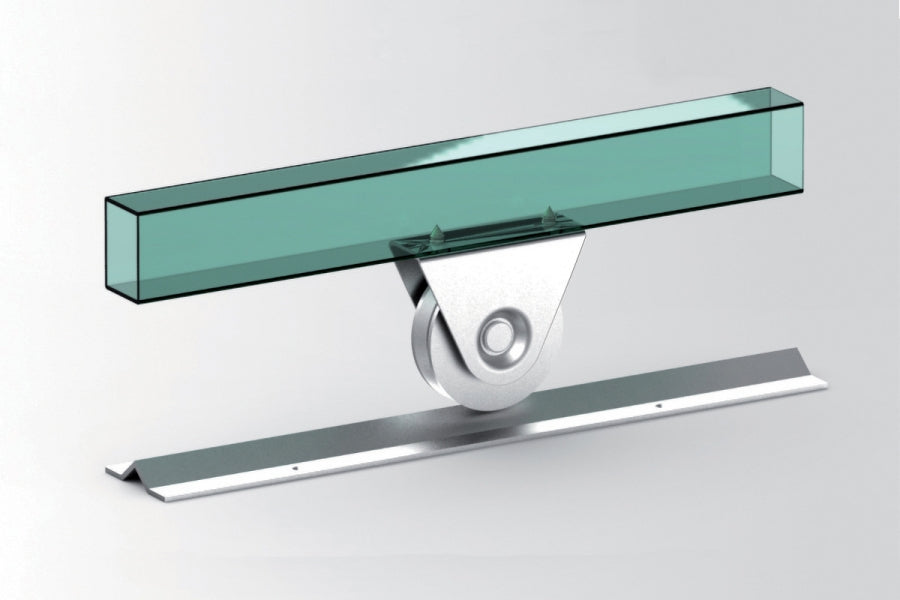

Metal wheel with 1 ball bearing and V groove to be screwed, suitable for heavy metal gates. This product by rotating allows the opening of gates operated manually or by electric engines. Consider to match the shape of the groove with the shape of the track in order to obtain a durable functioning and a not excessive consumption of the elements themselves. The installation is obtained by creating 2 threaded holes in the lower part of the profile of the gate lower section. Then it’s possible to screw the bracket of the wheel to the gate profile in correspondence of the predrilled holes. After the installation, the whole product will be visible.
| Codice | Misura | Finitura | Capacità (Kgx2pcs) | Unità | Pezzi per scatola |
|---|---|---|---|---|---|
| 386050 | 50mm | Acciaio Zincato | 60 | pezzo | 10 |
| 386060 | 60mm | Acciaio Zincato | 200 | pezzo | 10 |
| 386070 | 70mm | Acciaio Zincato | 200 | pezzo | 6 |
| 386080 | 80mm | Acciaio Zincato | 400 | pezzo | 6 |
| 386090 | 90mm | Acciaio Zincato | 420 | pezzo | 4 |
| 386100 | 100mm | Acciaio Zincato | 440 | pezzo | 4 |

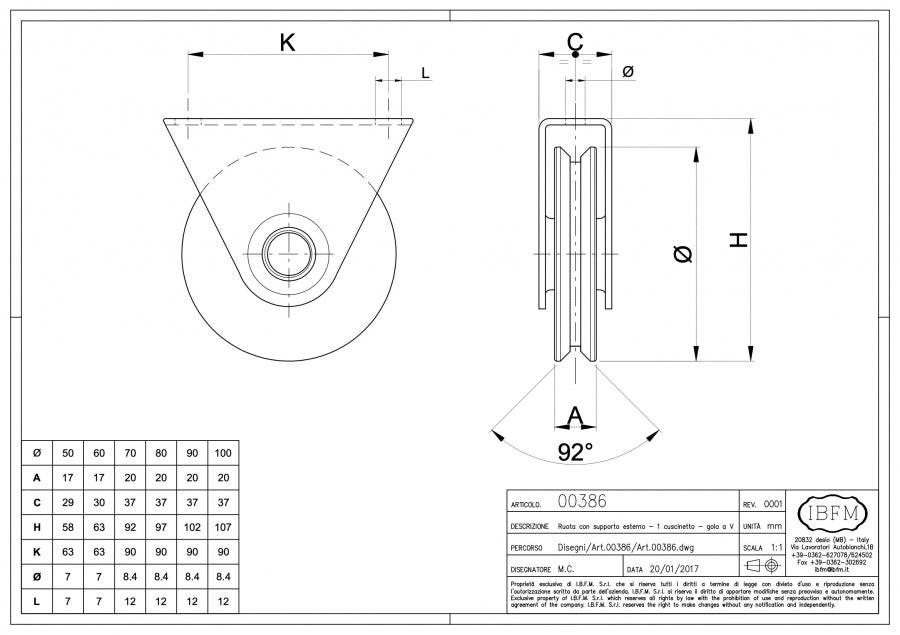

Le misure (Ø) si riferiscono al disegno tecnico.
Prodotto originale I.B.F.M., Desio.
