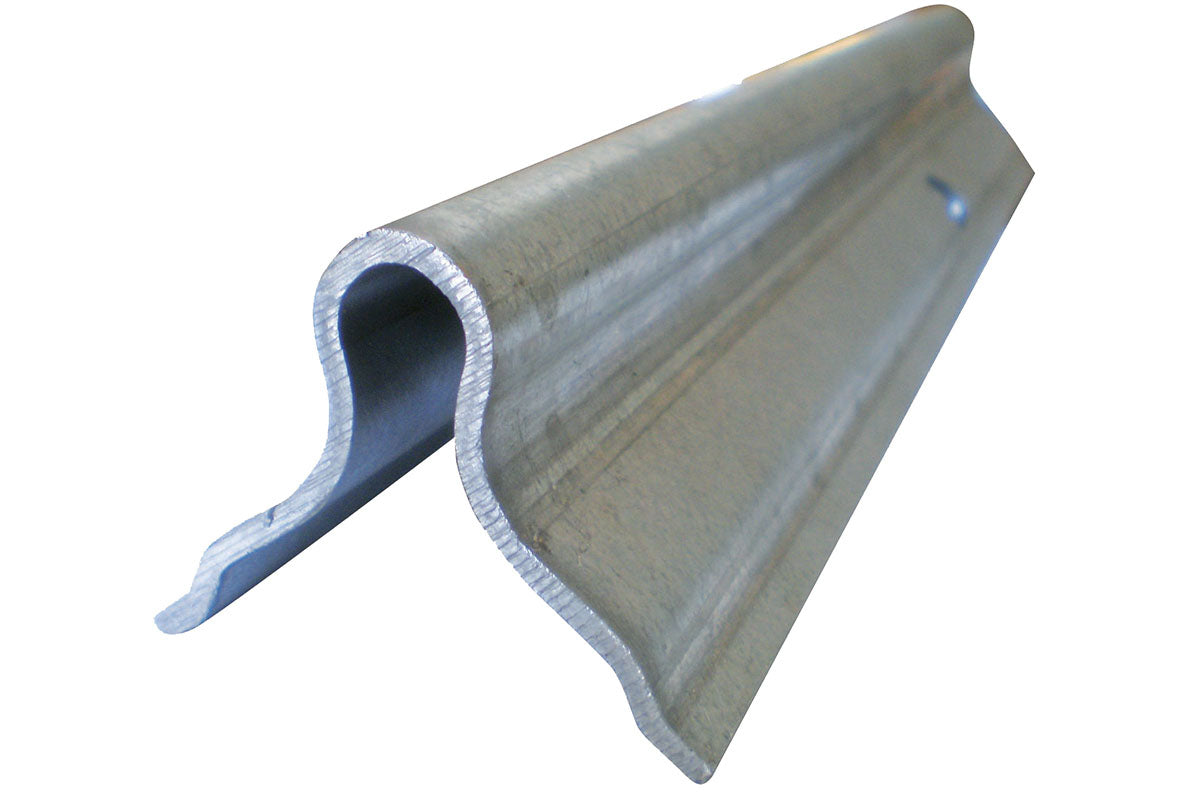

IBFM Art. 365/S Rotaia per Cancelli per Ruote Gola Tonda Ø 20

Material Technical Specifications (EN 10346:2015): DX51D Z (1.0226 / FeP02G) Yield Strength (Re): 140–300 MPa | Tensile Strength (Rm): 270–500 MPa | Minimum Elongation (A80): ≥ 22% | Chemical Composition C 0,18% Si 0,50% Mn 1,20% P 0,12% S 0,045% Ti 0,3% | Typical Hardness: 80–120 HB ------ Surface Coating Specifications (EN 10327:2004): Z100 Density: 7,1 g/cm3 | Coating Thickness: 5-12 microns | Z200 Density: 7,1 g/cm3 | Coating Thickness: 10-20 microns. The 365 series is a steel track profile designed for sliding gates equipped with round groove wheels (diameter 20mm). The internal groove geometry ensures perfect wheel engagement, smooth rolling, reduced friction, and uniform load distribution. Its robust steel construction provides high rigidity and resistance to deformation, making it suitable for residential, commercial, and industrial sliding gates.

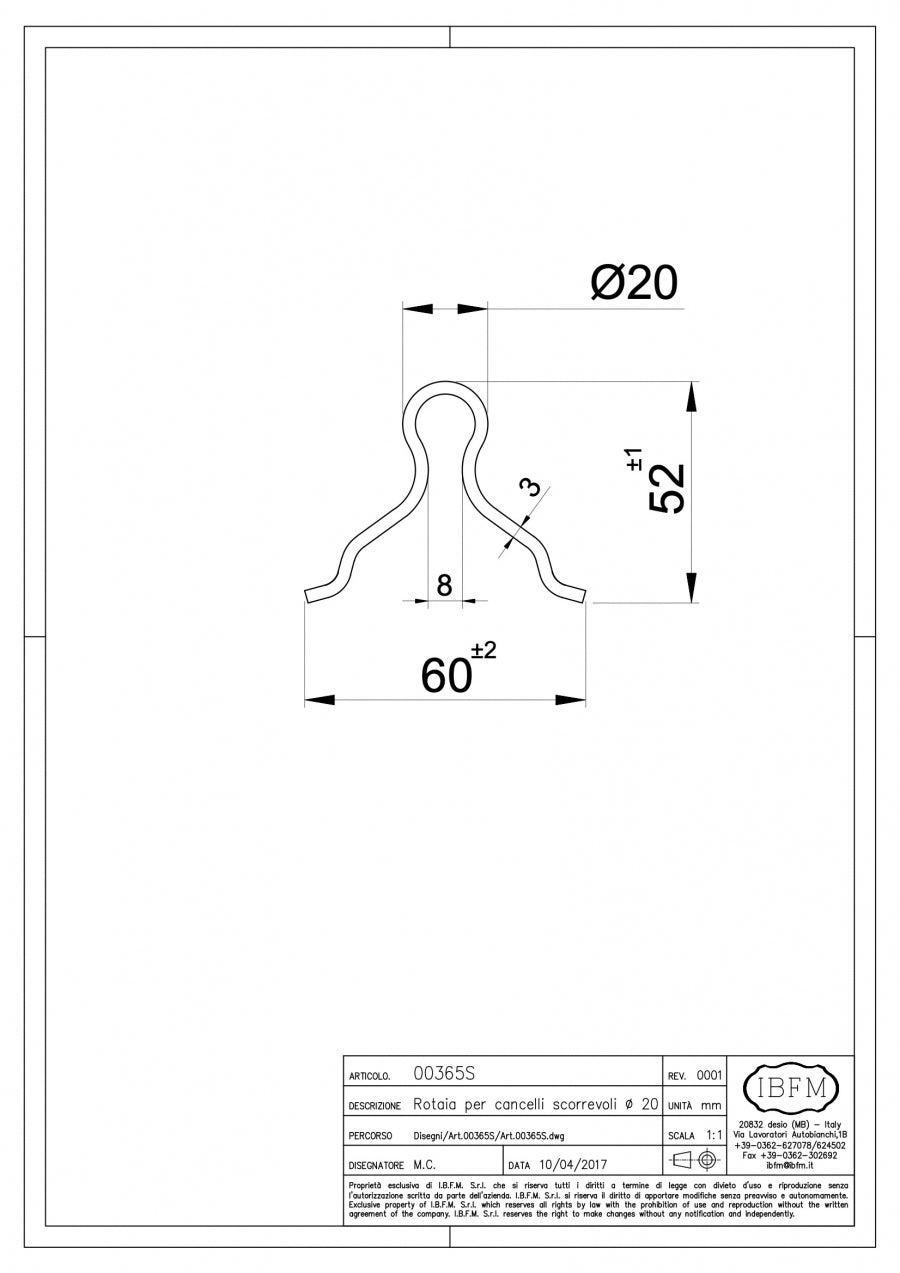

Le misure (L) si riferiscono al disegno tecnico.

Prodotto originale I.B.F.M., Desio.
