IBFM

IBFM Art. 36 Catenaccio Profilato Portalucchetto

IBFM Art. 36 Catenaccio Profilato Portalucchetto

Prezzo di listino €3,93
Prezzo di listino Prezzo scontato €3,93
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Misura (A)

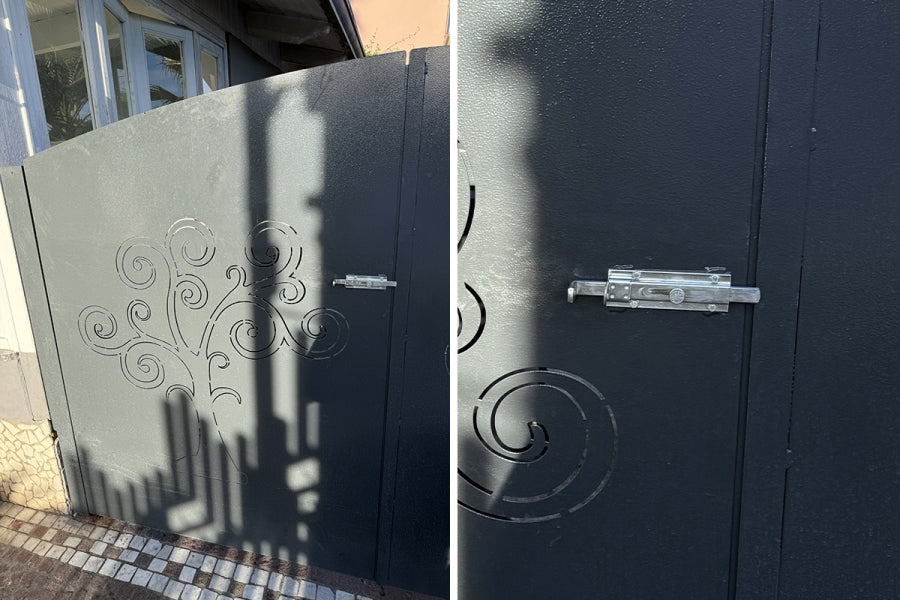

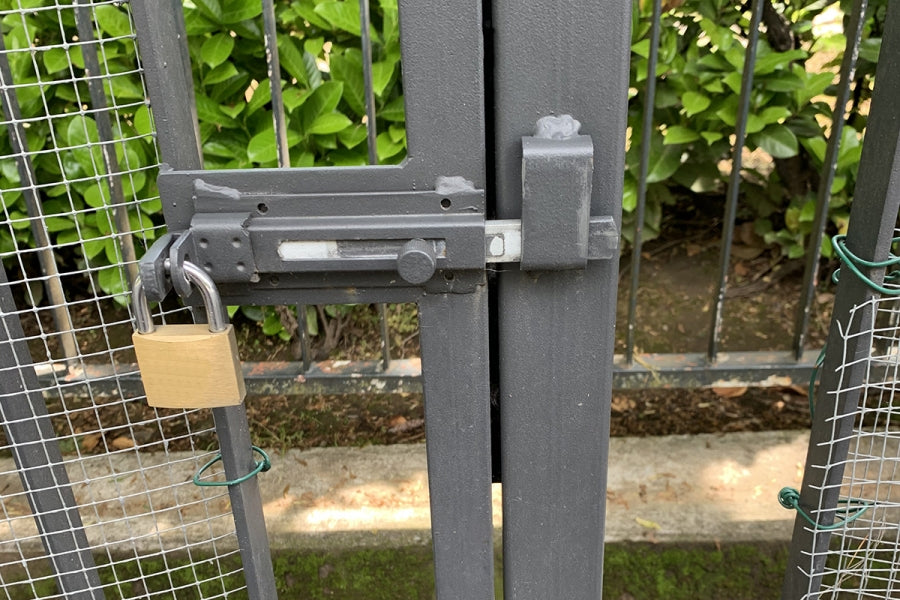

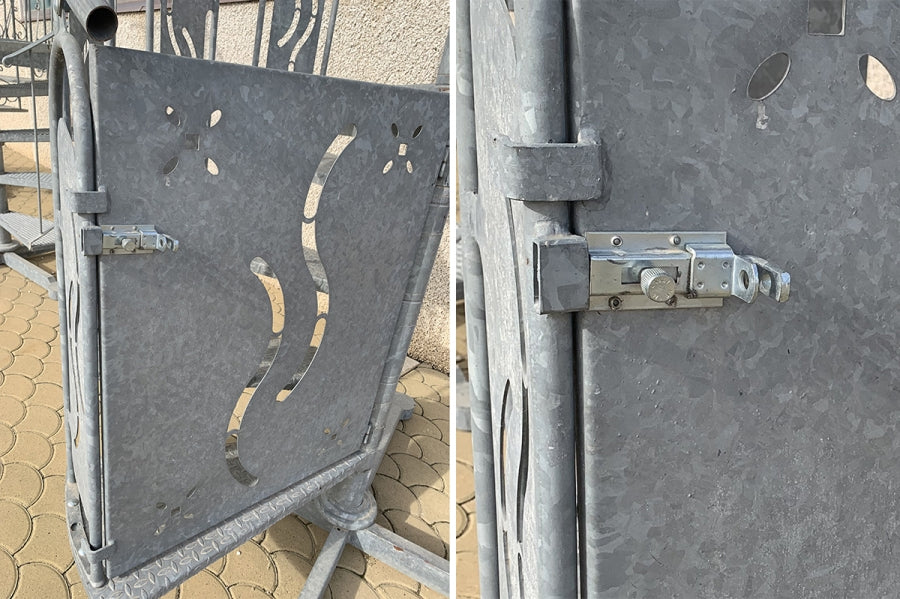

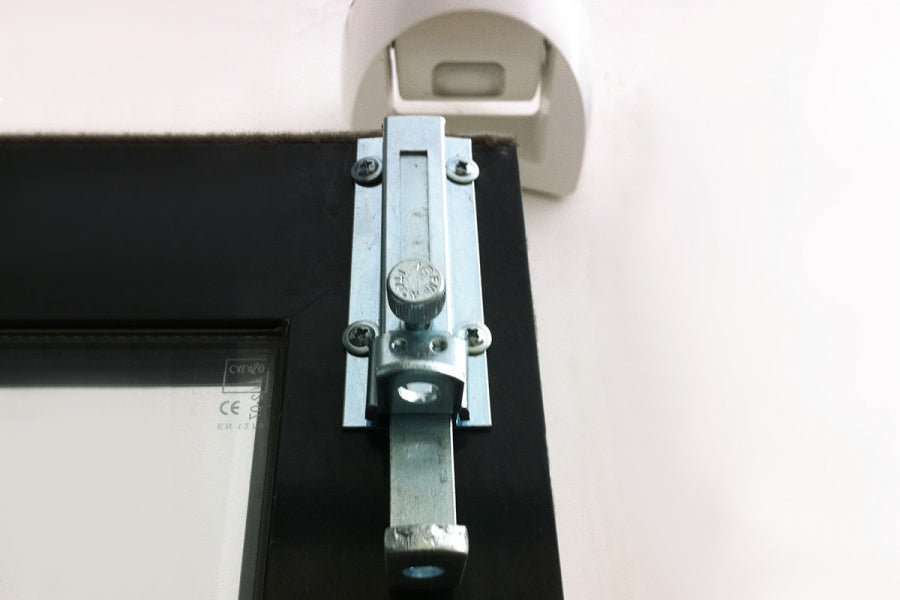

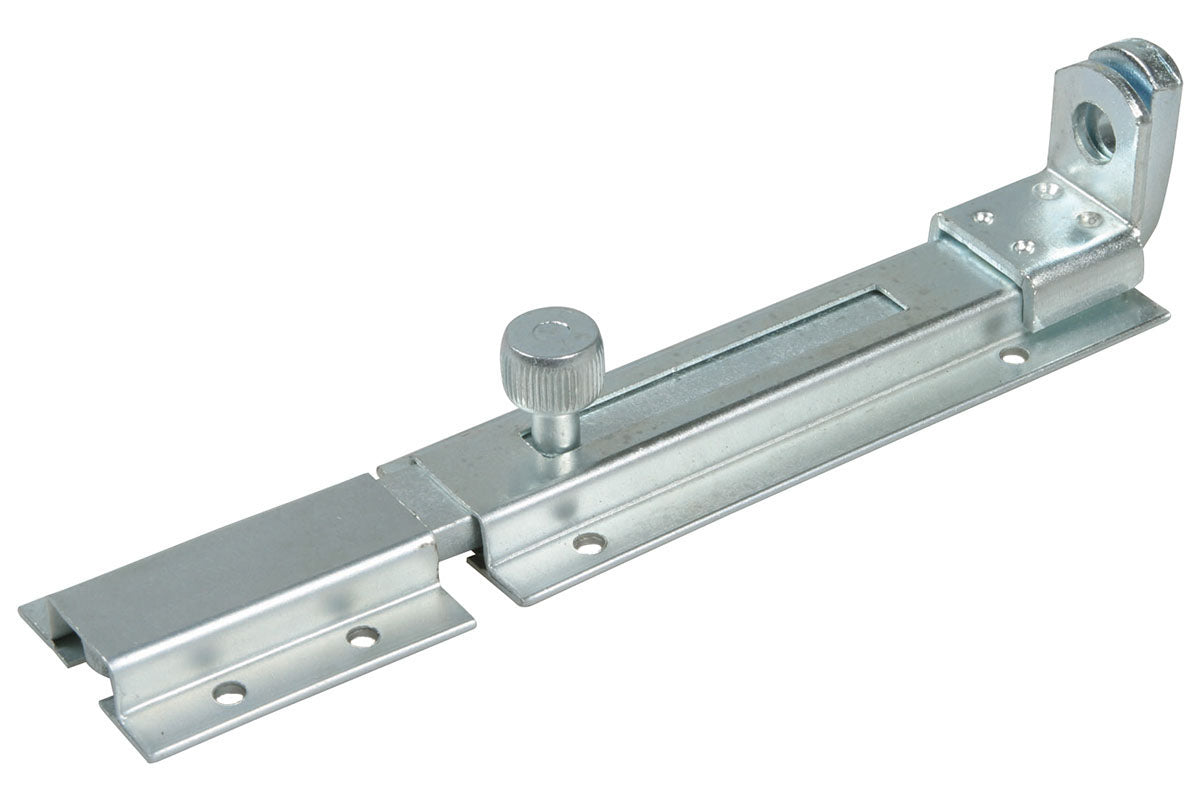

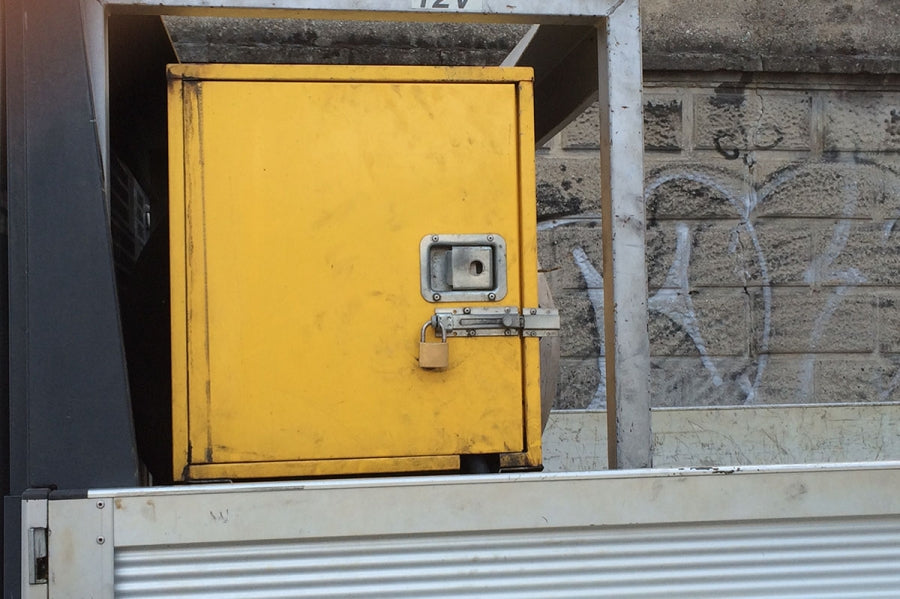

Safety horizontal bolt, with staple and with exposed fixing holes, to be screwed. To be used in order to lock not very heavy drawers, cabinets, openings or door leaves. Suitable to be screwed on wood, aluminum or metal or welded on metal surfaces. The functioning is assured by operating on the bar. The stability of the closing is assured by the hidden spring which keeps in position the closing bar. For additional security it is possible to apply a padlock (with max. Ø8 mm shackle) to the bolt. The product is supplied without any installation or fixing accessory (example: screws).

Codice Misura Finitura Unità Pezzi per scatola
036100 100mm Acciaio Zincato pezzo 10
036150 150mm Acciaio Zincato pezzo 10
036180 180mm Acciaio Zincato pezzo 10
036230 230mm Acciaio Zincato pezzo 10

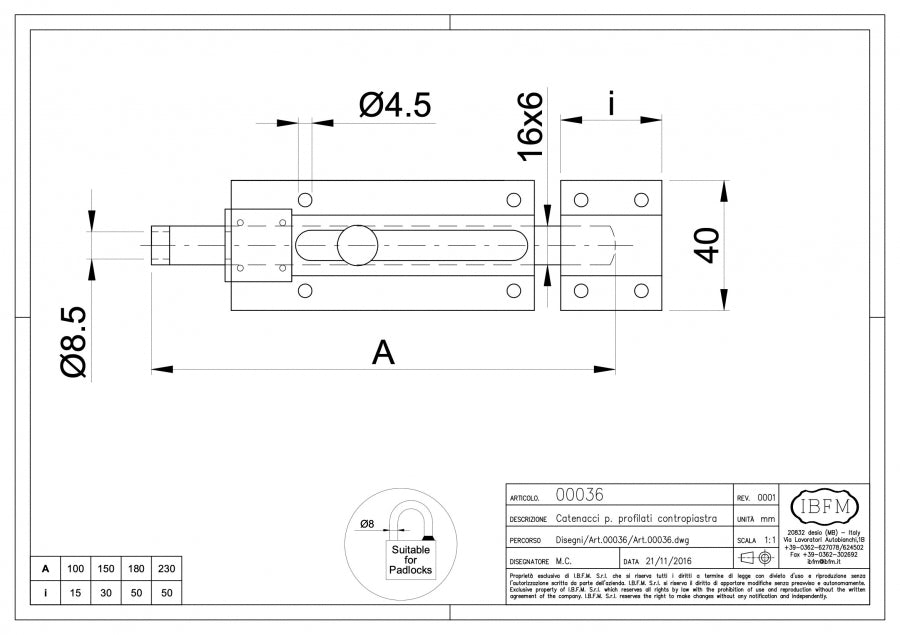

Le misure (A) si riferiscono al disegno tecnico.

Prodotto originale I.B.F.M., Desio.
