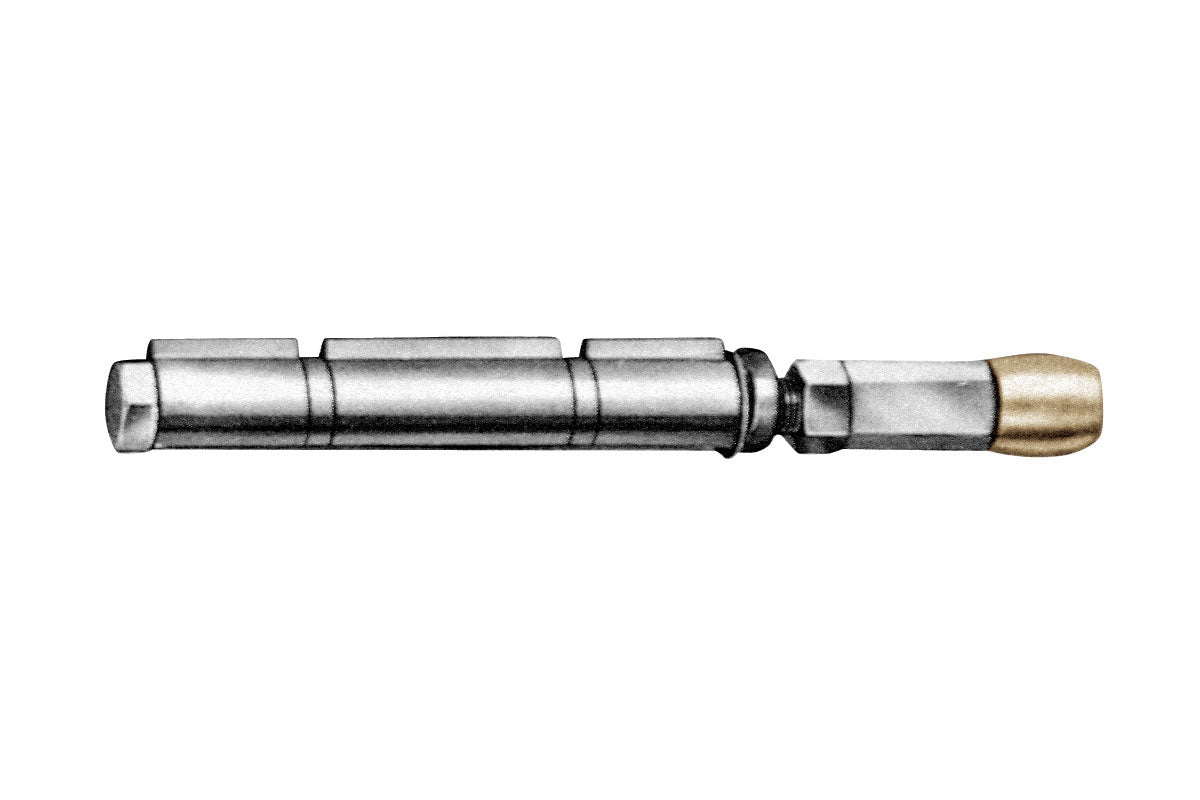

IBFM Art. 335 Perno Guida Inferiore

Rotative 3-winged lower guide for hanging gates with Brass sliding part. Suitable to be used with floor track Art.346. Installed on multi-panel openings, thanks to their rotation, these trolleys allow the sliding of hanged gates and the folding of the hanged door. To be used in cooperation with Art.333, the carrying capacity is intended for setups in which the track’s supports are at distance 700mm (maximum). The installation is obtained by welding the central wings of the trolleys on the 2 different door leaves to be suspended. This trolley should be installed on the (lower) central parts of multi-panel openings.

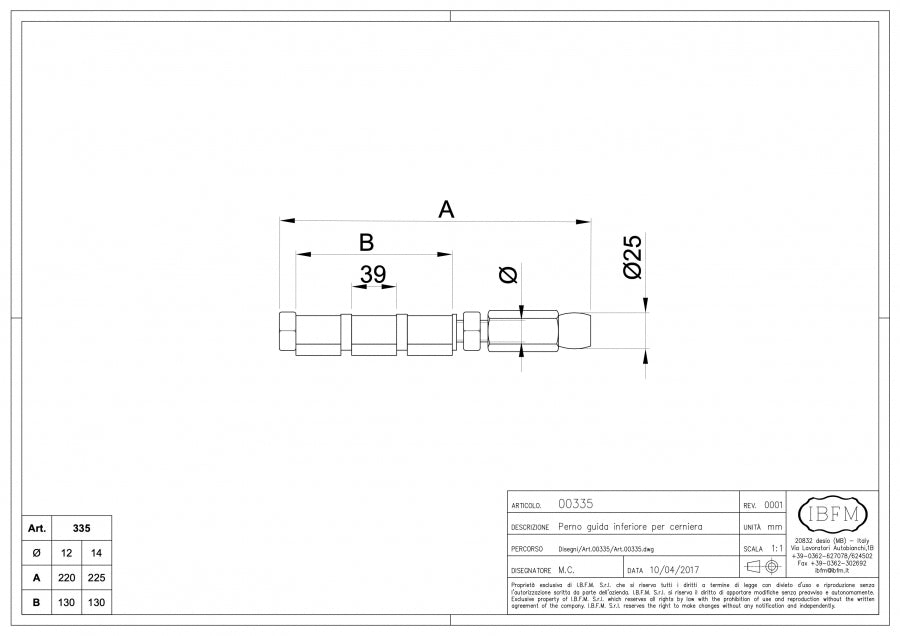

Le misure (Ø) si riferiscono al disegno tecnico.

Prodotto originale I.B.F.M., Desio.
