IBFM

IBFM Art. 331/I Carrello per Portone Scorrevole

IBFM Art. 331/I Carrello per Portone Scorrevole

Prezzo di listino €50,43
Prezzo di listino Prezzo scontato €50,43
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Misura (Ø)

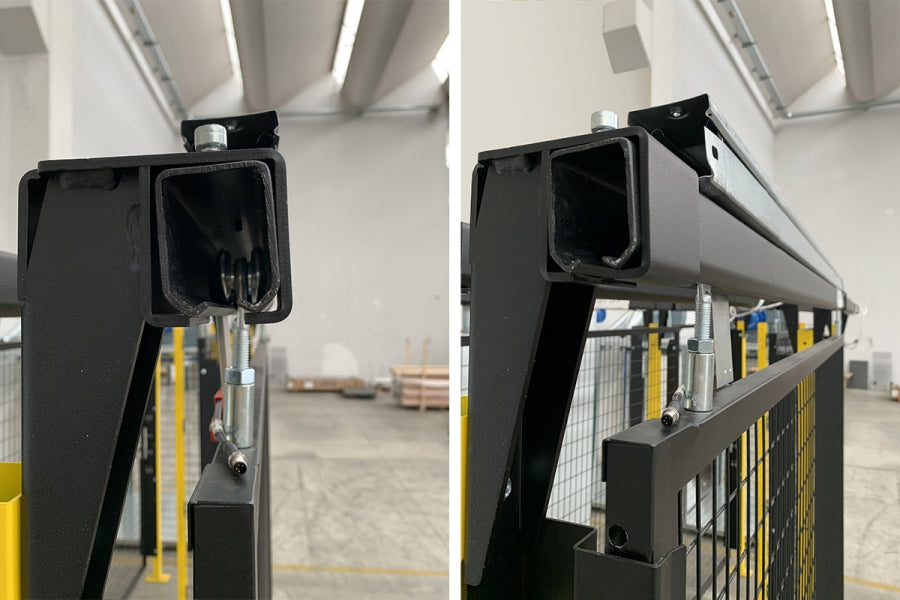

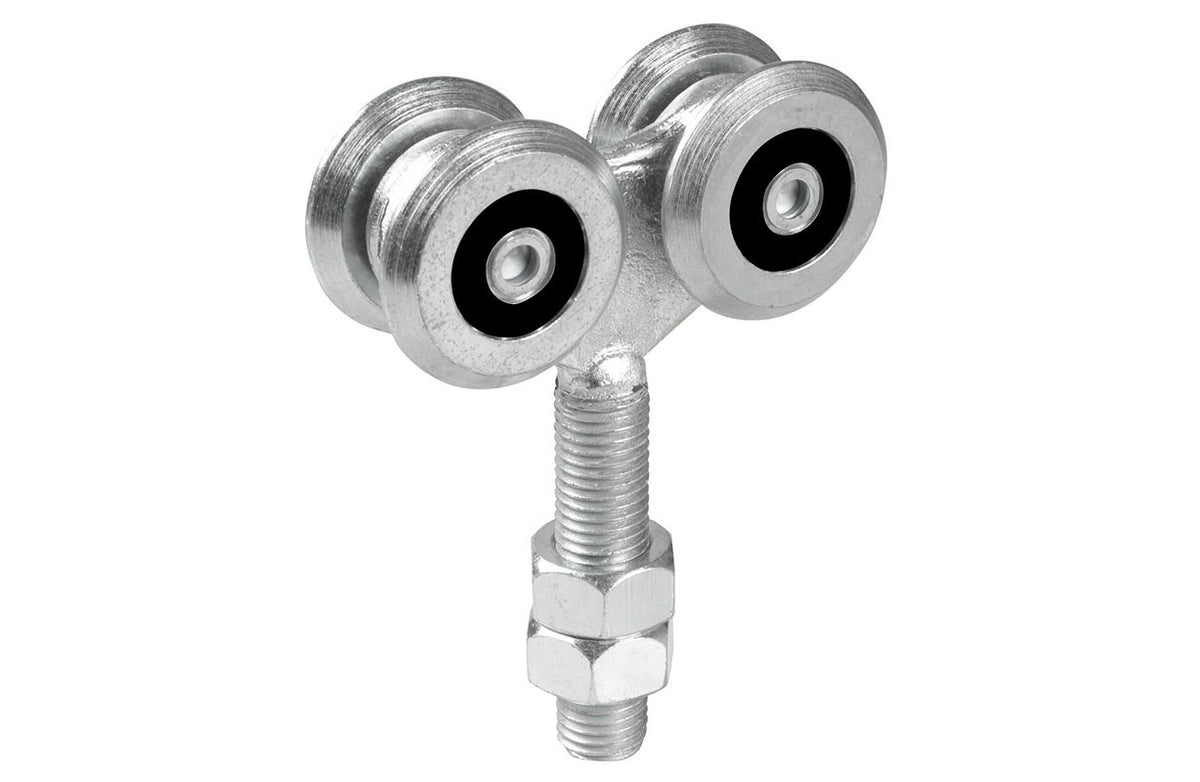

Fixed trolley for hanging gates with 4 open ball bearings. Suitable to be used with track Art. 339 or Art. 339i and plate Art. 327 or 336. Thanks to their rotation, these trolleys allow the sliding of hanged gates. To be used in pairs, the carrying capacity is intended for setups in which the track’s supports are at distance 700mm (maximum). The installation is obtained by screwing the trolleys in the door leaf to be suspended thanks to counter plates such as Art. 327 or Art.336.

Codice Misura Finitura Capacità (Kgx2pcs) Unità Pezzi per scatola
331024I 24mm Acciaio Inox 60 pezzo 20
331044I 42mm Acciaio Inox 400 pezzo 6

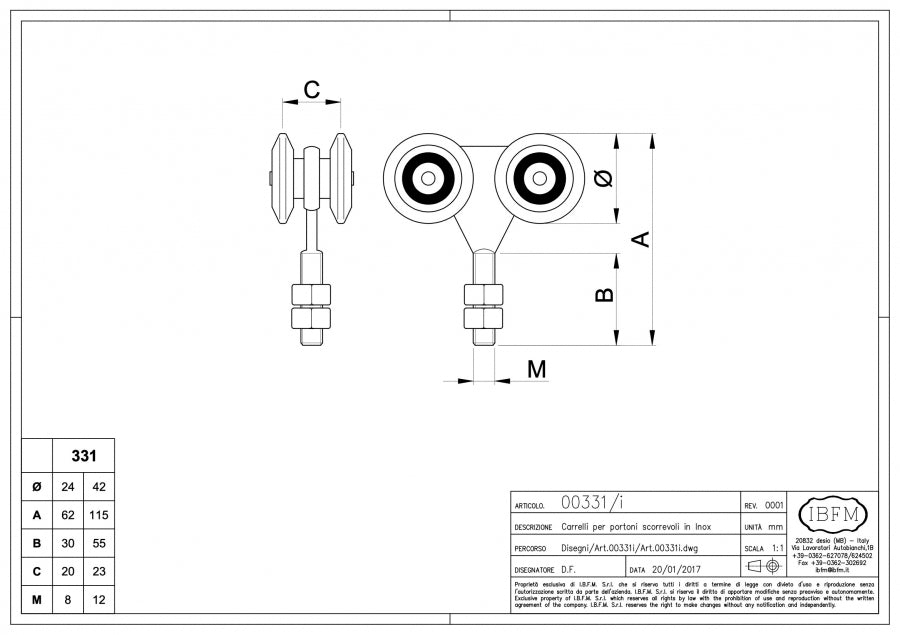

Le misure (Ø) si riferiscono al disegno tecnico.

Prodotto originale I.B.F.M., Desio.
