IBFM

IBFM Art. 15 Catenaccio Tondo con Portalucchetto

IBFM Art. 15 Catenaccio Tondo con Portalucchetto

Prezzo di listino €4,14
Prezzo di listino Prezzo scontato €4,14
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Misura (A)
Finitura

Safety horizontal round small bolt, with staple and with exposed fixing screws, to be screwed. To be used in order to lock not very heavy drawers, cabinets, openings or door leaves. Suitable to be screwed on wood, aluminum or metal surfaces. for padlocks to be screwed on wooden surface. To be used in order to lock small openings or cabinet. The functioning is assured by operating on the bar. The stability of the closing is assured by the hidden spring which keeps in position the closing bar. For added security it is possible to apply a padlock to the bolt.

Codice Misura Finitura Unità Pezzi per scatola
015070B 70mm Acciaio Bronzato pezzo 10
015070N 70mm Acciaio Verniciato Nero pezzo 10
015070V 70mm Acciaio Tropicalizzato pezzo 10
015070Z 70mm Acciaio Zincato pezzo 10
015110B 110mm Acciaio Bronzato pezzo 10
015110N 110mm Acciaio Verniciato Nero pezzo 10
015110V 110mm Acciaio Tropicalizzato pezzo 10
015110Z 110mm Acciaio Zincato pezzo 10
015150B 150mm Acciaio Bronzato pezzo 10
015150N 150mm Acciaio Verniciato Nero pezzo 10
015150V 150mm Acciaio Tropicalizzato pezzo 10
015150Z 150mm Acciaio Zincato pezzo 10

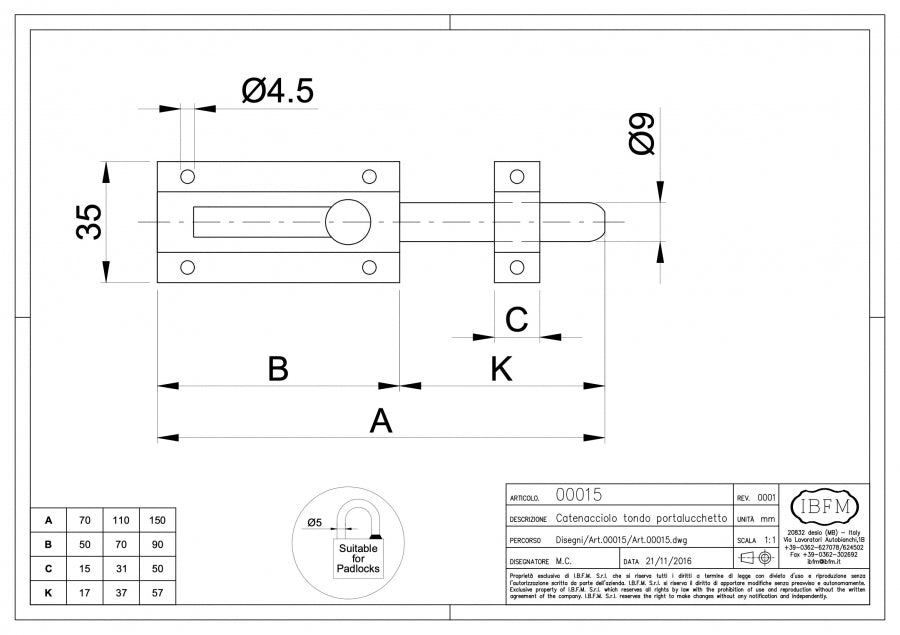

Le misure (A) si riferiscono al disegno tecnico.

Prodotto originale I.B.F.M., Desio.
