IBFM

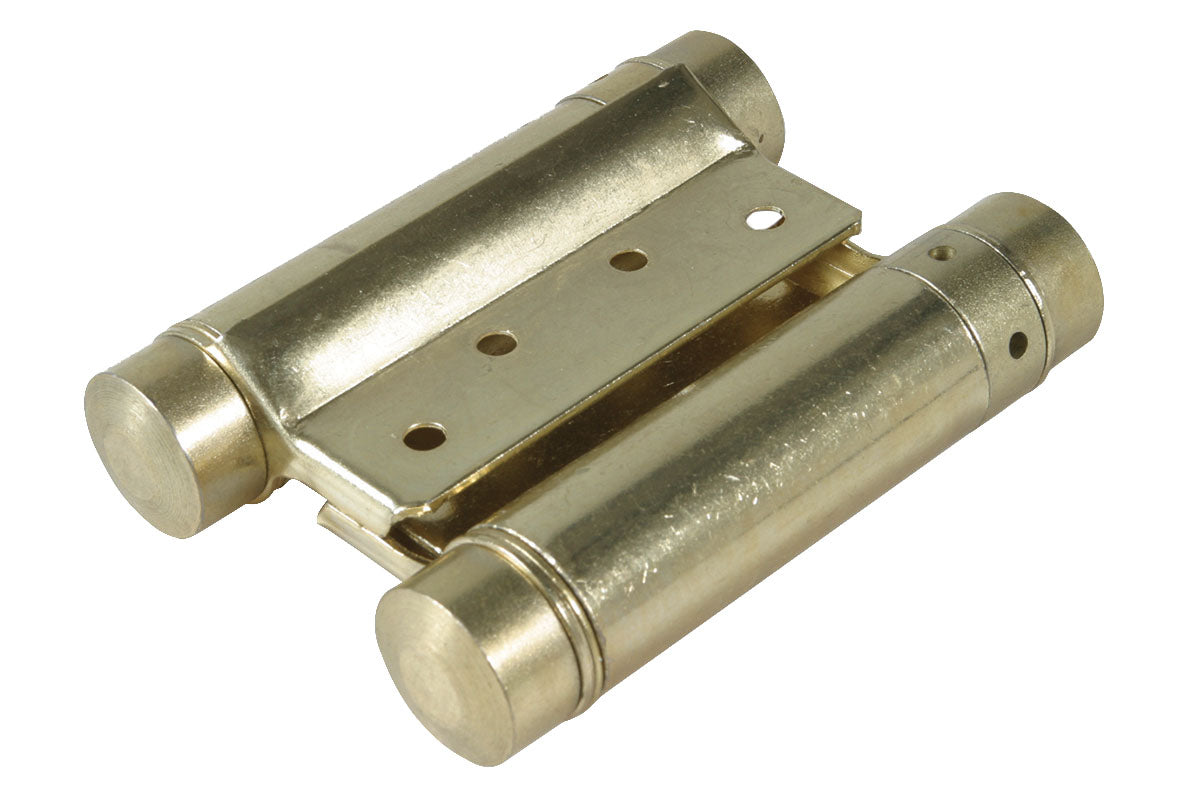

IBFM Art. 109 Cerniera a Molla Azione Doppia Ottonata

IBFM Art. 109 Cerniera a Molla Azione Doppia Ottonata

Prezzo di listino €33,52
Prezzo di listino Prezzo scontato €33,52
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Misura (A)

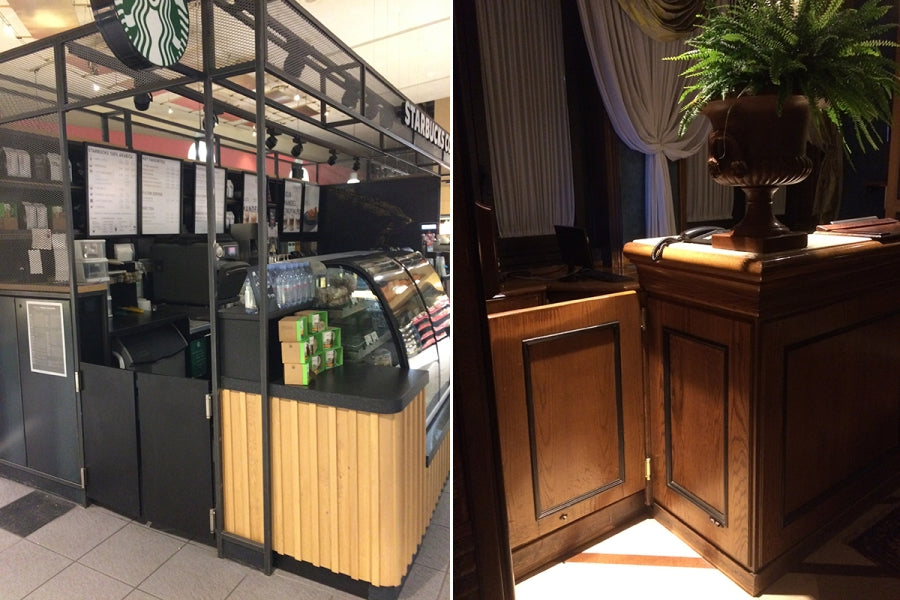

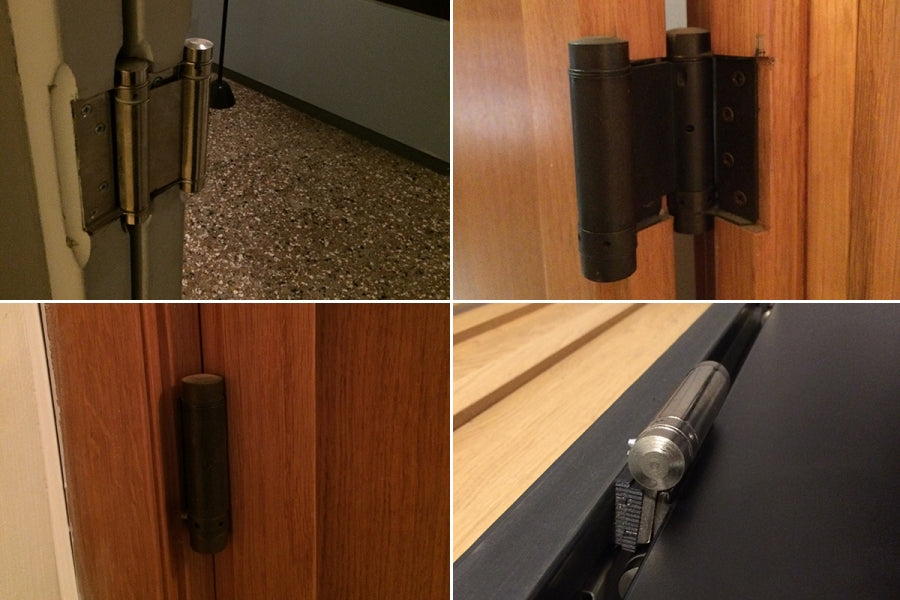

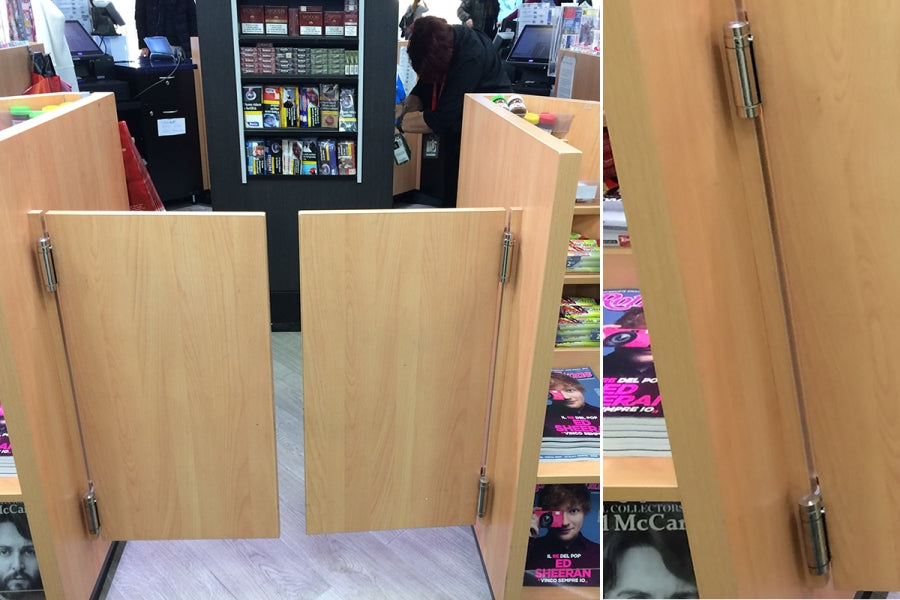

Double acting hinges to be installed on wooden openings, half doors and doors. These hinges allow the opening of the door leaf in both direction: inward and outward in order to simplify the passage of people or things. They also assure the closing of the door after the passage. In order to obtain more carrying capacity is possible to use more than a pair of hinges, paying attention to their vertical spacing, alignment and regulation. On these hinges can be regulated the strength of closing by operating on the tensioning pin, as reported in our product instructions.

Codice Misura Finitura Capacità (Kgx2pcs) Unità Pezzi per scatola
109029 75mm Acciaio Ottonato 15 coppia 1
109030 100mm Acciaio Ottonato 22 coppia 1
109033 125mm Acciaio Ottonato 27 coppia 1
109036 150mm Acciaio Ottonato 40 coppia 1
109039 175mm Acciaio Ottonato 55 coppia 1
109042 200mm Acciaio Ottonato 70 coppia 1

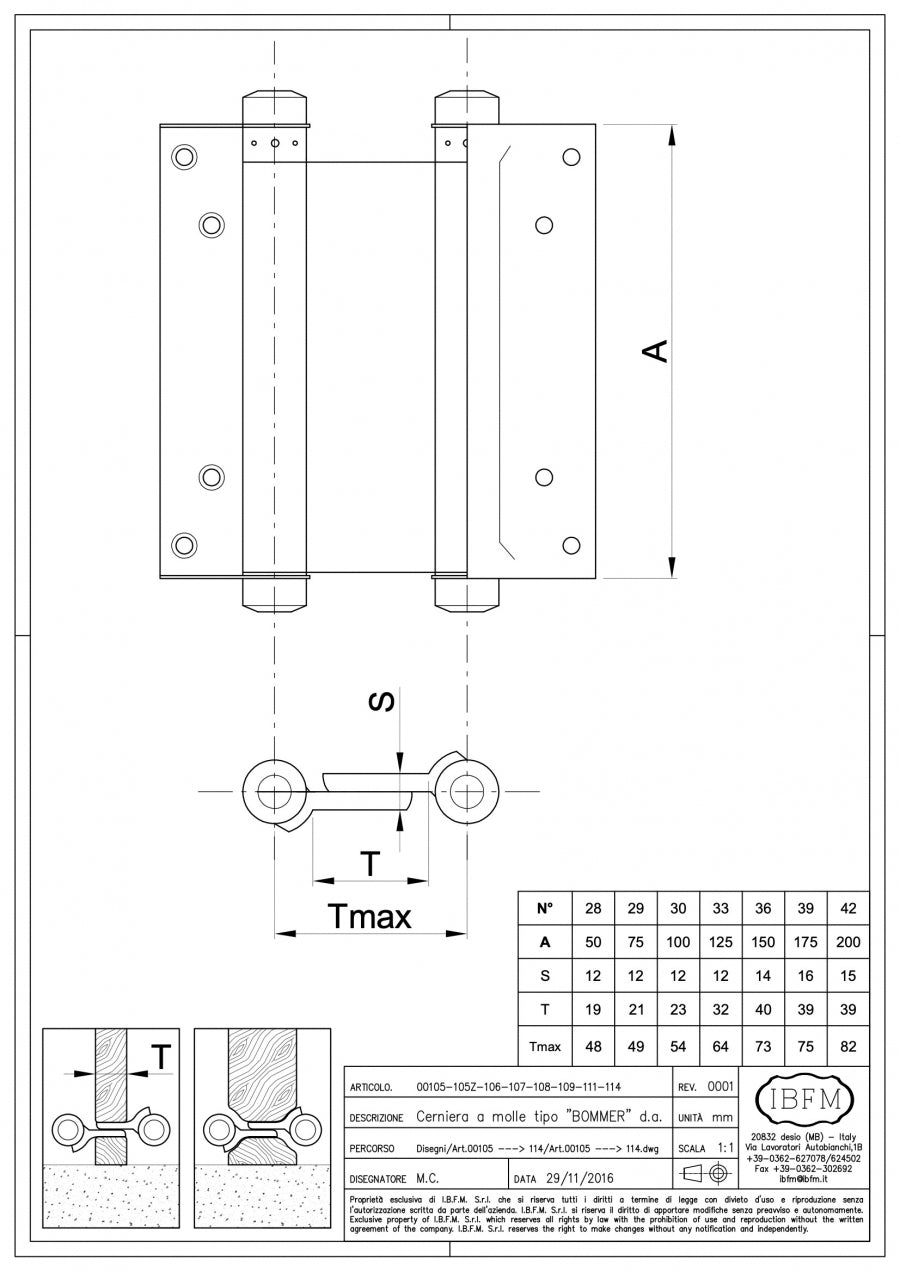

Le misure (A) si riferiscono al disegno tecnico.

Prodotto originale I.B.F.M., Desio.
